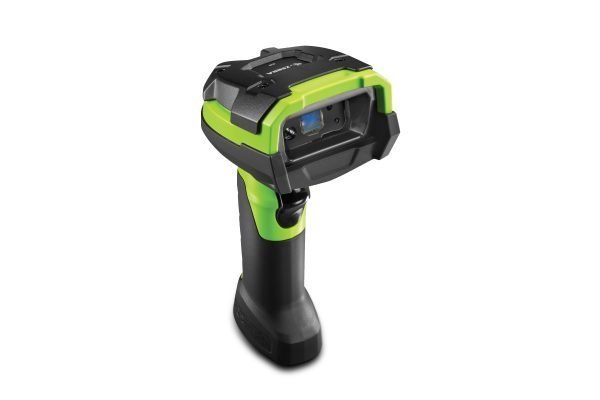

Description Zebra DS3608-SR Ultra Rugged 2D Corded SR Scanner (DS3608-SR3U4600VZW) The productivity of your warehouse and manufacturing workers depends on the quality of their scanners. The DS3600-SR Ultra-Rugged scanner enables reliable capture of 1D and 2D barcodes at standard ranges—from near contact to nearly 5 ft./1.5 m away. Built for your toughest environments, the DS3600-SR is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete and dual IP65/IP68 sealing. With DataCapture DNA, Zebra’s exclusive software ecosystem, you can take scanner performance far beyond the basics—simplifying every stage of the scanning experience over the life of your device. And when it comes to cordless technology, the DS3678-SR’s Zebra-only features put it in a class of its own. The DS3600-SR—the unstoppable performance you need to maximize workforce productivity and throughput in your operations. Performs In Your Toughest Environments Scan it All—at Astonishing Speeds Workers can capture virtually any 1D or 2D barcode as fast as they can pull the trigger, whether they’re in hand or as far as 5 ft./1.5 m away—faster and farther than other standard range scanners. Powered by Zebra’s exclusive PRZM Intelligent Imaging technology and the highest sensor resolution in its class, the DS3600-SR instantly captures the most problematic barcodes—including barcodes that are dirty, damaged, poorly printed and under shrinkwrap. Ultra-Rugged—the Most Indestructible Design in its Class Zebra ultra-rugged scanners earned their name for a reason—you won’t find a tougher family of scanners. Ready for the world’s harshest environments, the DS3600-SR has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles. With dual IP65/IP68 sealing, the DS3600-SR is dust proof, can handle the force of jetting water and be fully submerged in water. Built to withstand extreme heat, cold and humidity, the DS3600-SR can be used anywhere— indoor, outdoor and even in the freezer.¹ Ultra-Rugged Cradle and Charging Contacts Designed to Last The DS3600-SR is the first scanner in its class to offer a cradle with IP65 sealing. Its industrial charging contacts withstand 250,000 insertions. And Zebra’s exclusive Connect Contact technology assures reliable, corrosion-free charging over the life of the scanner. Easily Capture Label Data for Better Inventory Management With Label Parse , the DS3600-SR can instantly capture and parse GS1 label barcode data on items, enabling workers to easily capture a wealth of data, including expiration dates and lot number/manufacturing location. Read Up To 20 Barcodes with One Press of the Scan Trigger With Multi-Code Data Formatting (MDF), the DS3600-SR can capture multiple barcodes with a single scan and transmit only the barcodes you need, in the order your application expects. Specifications Physical Characteristics Dimensions Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D Weight Corded: 10.76 oz./305 g Cordless: 14.34 oz./407 g Input Voltage Range Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. Operating Current DS3608-SR (corded): 360 mA (RMS typical) Standby Current DS3608-SR (corded): 100 mA (RMS typical) Color Industrial Green Supported Host Interfaces USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP Battery PowerPrecision 3100 mAh Li-Ion rechargeable battery User Indicators Direct decode indicator; LEDs; beeper; vibration Performance Characteristics Scans per Full Charge 100,000 Image Capture Basic Illumination One (1) 660 nm LED Aimer 610 nm LED Imager Field of View Horizontal: 42°, Vertical: 28° Image Sensor 1,280 x 800 pixels Minimum Print Contrast 15% minimum reflective difference Skew/Pitch/Roll Skew: ± 60° Pitch: ± 60° Roll: ± 360° Decode Capabilities2 1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes Digimarc Digital watermark technology IUID Support Supports IUID parsing, the ability to read and Separate IUID fields per application requirements User Environment Operating Temp. Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C Storage Temp. -40° F to 158° F/-40° C to 70° C Humidity 5% to 95% non-condensing Drop Specification DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C Tumble Specification 7500 3.3 ft./1.0 m tumbles Sealing Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65 ESD Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge Utilities and Maintenance 123Scan Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan Scanner SDK Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK Scanner Management Service (SMS) Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms Network Connect Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network without any third-party conversion equipment. For more information, visit www.zebra.com/NetworkConnect Wireless Connectivity Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy Radio Range Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) Decode Ranges (Typical)3 Symbology/Resolution Near/Far Code 128: 5 mil 1.3-6.7 in./3.3-17 cm Code 128: 20 mil 2.8-28.0 in./7.1-71.1 cm Code 128: 40 mil 1.7-60 in./4.4-152.4 cm Datamatrix: 7.5 mil 1.9-6.0 in./4.8-15.2 cm Datamatrix: 10.0 mil 1.4-8.6 in./3.5-21.8 cm Regulatory Environmental RoHS EN 50581: 2012 Electrical Safety EU Safety: EN 60950-1: 2006 A11: 2009 A1: 2010 A12: 2011 AC 2011 A2: 2013 International Safety: IEC 60950-1: 2005 A1: 2009 A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 LED Safety International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) EMI/RFI IT Emissions: EN 55022: 2010/AC: 2011 (Class B) IT Immunity: EN 55024: 2010 Heavy Industrial: EN 61000-6-2: 2005/AC:2005 Harmonic Current Emissions: EN 61000-3-2: 2006 A1: 2009 A2: 2009 (Class B) Voltage Fluctuation and Flicker: EN 61000-3-3: 2013 Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified) Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B
