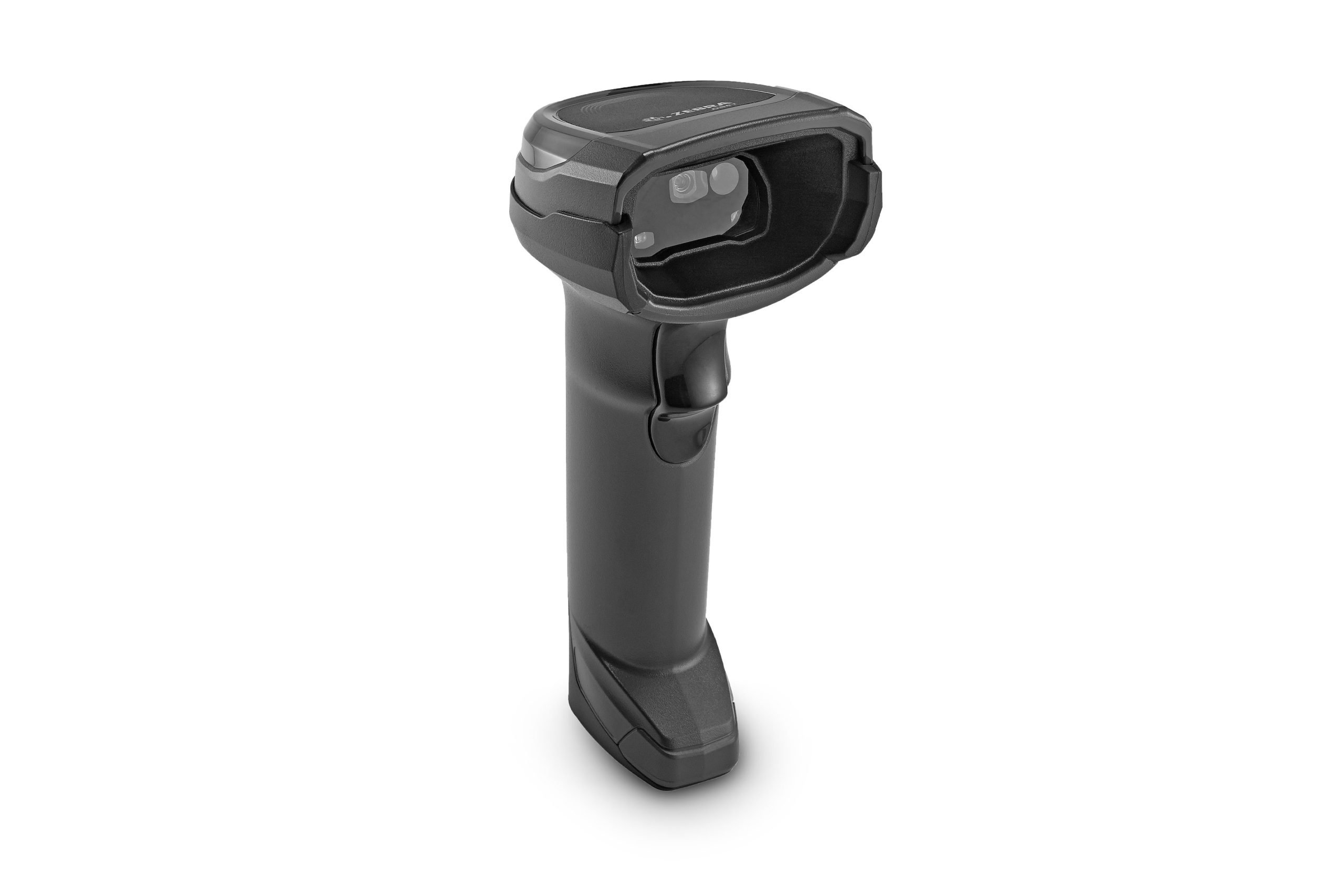

Description Zebra DS8178 Cordless Bluetooth 2D SR Barcode Scanner (DS8178-SR7U2100SFW) The final step of a shopping journey is a retailer’s last chance to make a good impression. Whether customers are using curbside pickup or in-store checkout, they expect speed and convenience. With the DS8100 Series handheld imager, you can elevate the customer experience and deliver frictionless transactions at every touchpoint — from cashier manned and self-checkout lanes to curbside and in-store pickup. The DS8100 Series rises above conventional imagers, providing unprecedented scanning performance so cashiers and self-checkout customers can easily scan any barcode the first time, every time. You get a wide range of innovations, including interchangeable power sources — a PowerPrecision battery and PowerCapTM capacitor1. And every DS8100 Series imager is engineered with DataCapture DNA, Zebra’s exclusive software ecosystem that simplifies every stage of the scanning experience over the life of your device. Keep checkout lines moving with the DS8100 Series, the ultimate in handheld scanning performance and innovation. Unprecedented Performance Unparalleled performance on virtually every barcode in any condition Only the DS8100 Series combines the power of an 800 MHz microprocessor, the highest sensor resolution in its class and Zebra’s exclusive PRZM Intelligent Imaging technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes — including dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays. Superior scan range A scanning range up to 24 in./61 cm, a high resolution imaging sensor and a bright “aiming spot” improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer’s shopping cart — without leaving the cash-wrap. Innovation beyond the barcode Swappable power options reduce your investment risk Two interchangeable power options are available to power your devices: a PowerPrecision battery or a PowerCap capacitor. You can swap power options at any time on all models, right in your facility — no need to purchase separate battery-free and battery powered devices. And managing your power sources is easy. Since the PowerPrecision battery and PowerCap capacitor can report their model and serial numbers, you’ll always know which power source is in each scanner. On a single charge, the advanced PowerPrecision battery provides over three around-the-clock days of continuous scanning, plus a wealth of metrics for better battery management. The PowerCap capacitor is ideal when the scanner can always be inserted into a charging cradle when not in use. The largest capacitor in its category, the superior PowerCap offers 2,000 scans on a full charge and 100 scans after as little as 35 seconds in the cradle — both metrics are four times the competition. Specifications Physical Characteristics Dimensions Corded DS8108 and Cordless DS8178: 6.6 in. H x 2.6 in. W x 4.2 in. D 16.8 cm. H x 6.6 cm. W x 10.7 cm. DStandard Cradle: 2.8 in. H x 3.3 in. W x 8.3 in. D 7.1 cm. H x 8.4 cm. W x 21.1 cm. DPresentation Cradle: 2.9 in. H x 3.7 in. W x 4.8 in. D 7.4 cm. H x 9.4 cm. W x 12.2 cm. D Weight Corded DS8108: 5.4 oz./154 g Cordless DS8178: 8.3 oz./235.3 g Desk/Wall Cradle: 7.1 oz./202 g Presentation Cradle: 6.5 oz./182 g Input Voltage Range DS8108: 4.5 to 5.5VDC DS8178 Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC Current2 Corded DS8108 Operating Current at Nominal Voltage (5.0V): 450 mA Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V Color Nova White, Twilight Black Supported Host Interfaces USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 Keyboard Support Supports over 90 international keyboards FIPS Security Certification Certified Compliant with FIPS 140-2 User Indicators Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge Performance Characteristics Light Source Aiming Pattern; circular 617nm amber LED Illumination (2) 645nm red LEDs Imager Field of View 48° H x 37° V nominal Image Sensor 1,280 x 960 pixels Minimum Print Contrast 16% minimum reflective difference Skew/Pitch Roll Tolerance /- 60°; /- 60°; 0-360° Imaging Characteristics Graphics Format Images can be exported as Bitmap, JPEG or TIFF Image Quality 109 PPI on an A4 document Minimum Element Resolution Code 39 – 3.0 mil; Code 128 – 3.0 mil; Data Matrix – 6.0 mil; QR Code – 6.0 mil; PDF – 5.0 mil User Environment Operating Temperature 32° to 122° F/0° to 50° C Charging Temperature 32° to 104° F/0° to 40° C Storage Temperature -40° to 158° F/-40° to 70° C Humidity 5% to 95% RH, non-condensing Drop Specification Designed to withstand multiple drops at 6.0 ft/1.8 m to concrete Tumble Specification Designed to withstand 2,000 1.5 ft./0.5 m tumbles3 Environmental Sealing IP52 Electrostatic Discharge (ESD) DS8108/DS8178 and Cradles: ESD per EN61000-4-2, /-15 KV Air, /-8 KV Direct, /-8 KV Indirect Ambient Light Immunity 0 to 9,000 Foot Candles/0 to 96,840 Lux Radio Specifications Bluetooth Radio Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft./100m and Class 2 33 ft./10m, Serial Port and HID Profiles Adjustable Bluetooth Power Class 1: Output power adjustable down from 4 dBm in 8 Steps Class 2: Output power adjustable down from 2 dBm in 8 Steps Power PowerPrecision Li-Ion Battery Capacity: 2500 mAh Number of scans from full charge: 65,0004 Charge time from empty to full: 9 hours over USB Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 3 hours over USB PowerCap Capacitor Capacity: 440 F Number of scans from full charge: 2,0004 Number of scans from Ready-To-Scan at 20% of full charge (default): 2004 Number of scans from Ready-To-Scan at 15% of full charge: 1004 Charge time from empty to full: 30 min over USB Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 90 sec over USB Charge time from audible low charge warning to Ready-to-Scan at 15% of full charge: 35 sec over USB Regulatory Electrical Safety EN 60950-1 2ed A11 A1 A12 A2:2013, IEC 60950-1 2ed A1 A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 Environmental RoHS EN 50581 LED Safety IEC 62471 IT Emissions EN 55022 (Class B); EN 55032 (Class B) IT Immunity EN 55024 Harmonic Current Emissions EN 61000-3-2 Voltage Fluctuation and Flicker EN 61000-3-3 Radio Frequency Devices 47 CFR Part 15, Subpart B, Class B Digital Apparatus ICES-003 Issue 6, Class B Accessories Standard cradle, presentation cradle, wall mount bracket, spare battery, spare PowerCap; document capture stands Decode Capabilities5 1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, SecurPharm, DotCode, Dotted DataMatrix Digimarc Digital watermark technology Decode Ranges (Typical)6 Symbology/Resolution Near/Far Code 39: 3 mil 2.2 in./5.6 cm to 5.0 in./12.7 cm Code 39: 20 mil 0 in./0 cm to 36.8 in./93.5 cm Code 128: 3 mil 2.6 in./6.6 cm to 4.5 in./11.4 cm Code 128: 5 mil 1.6 in./4.1 cm to 8.4 in./21.3 cm Code 128: 15 mil 0 in./0 cm to 27.1 in./68.8 cm PDF 417: 5 mil 2.3 in./5.8 cm to 6.4 in./16.3 cm PDF 417: 6.7 mil 1.8 in./4.6 cm to 8.5 in./21.6 cm UPC: 13 mil (100%) 0 in./0 cm to 24.0 in./61.0 cm Data Matrix: 7.5 mil 2.1 in./5.3 cm to 6.9 in./17.5 cm Data Matrix: 10 mil 1.1 in./2.8 cm to 9.9 in./25.1 cm QR: 20 mil .1 in./.3 cm to 17.6 in./44.7 cm
