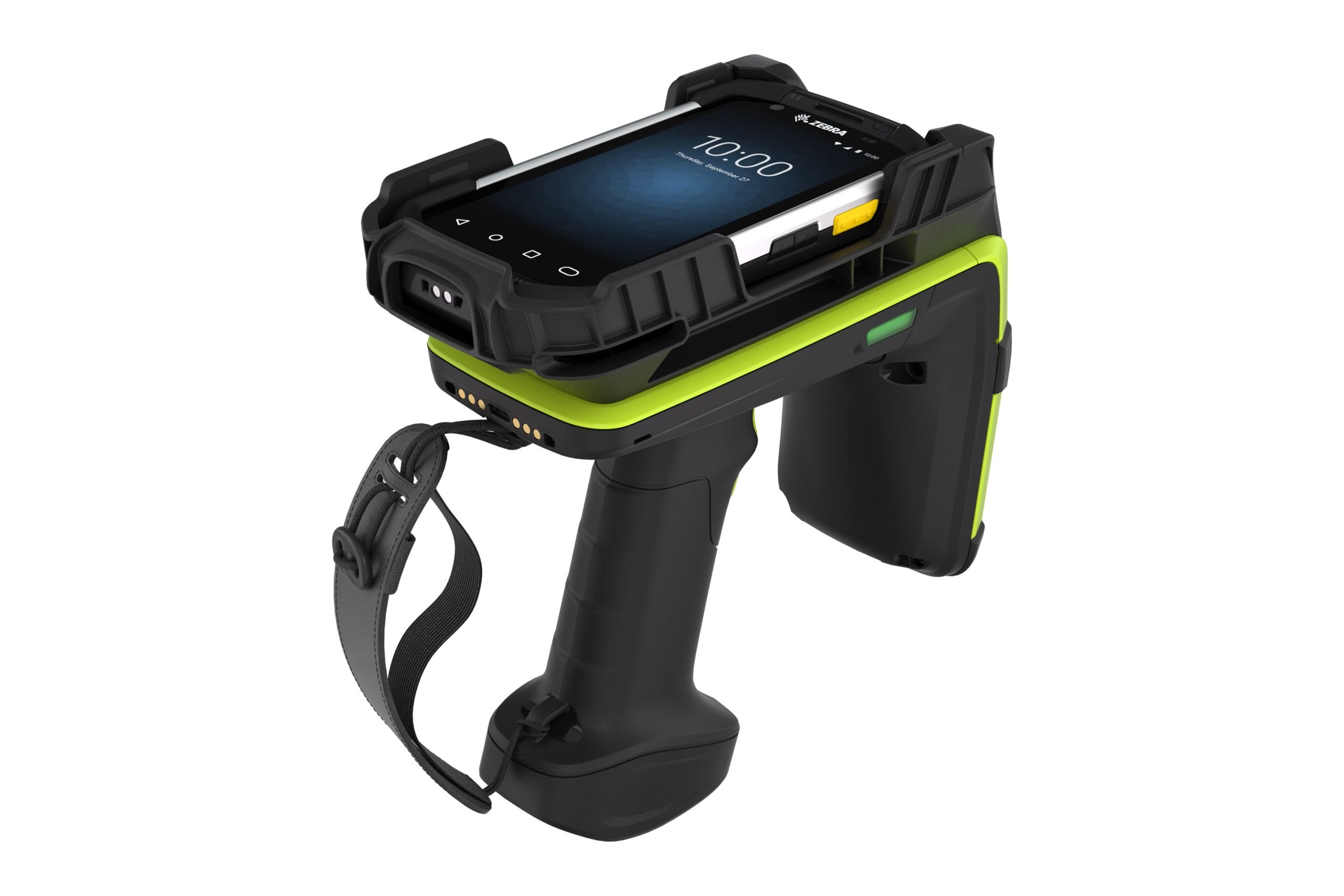

Description Zebra RFD90 RFID Ultra Rugged Cordless Bluetooth WIFI SR Scanner (RFD9031-G30G700-WR) Today’s manufacturing, transportation and logistics operations are under pressure to deliver higher volumes at greater speeds, while struggling with unpredictable supply chains and labor pools. Fast, accurate RFID solutions can make a critical difference—now even in the most demanding environments. Zebra’s RFD90 Ultra-Rugged UHF RFID Sleds are built for harsh conditions, tested for 6-foot (1.8-meter) drops to concrete and sealed to industrial-grade dual IP65 and IP67 ratings. Both the standard-range RFD9030 Sled and long-range RFD9090 Sled provide industry-leading read rates of 1,300 tags per second, an ultra-accurate item-finder mode, a tri-function user-programmable trigger and Wi-Fi 6 capability for easy device management. Changeable eConnex™ adaptors and charging cradles support rugged Zebra mobile computers, while integrated Bluetooth® 5.3 connectivity supports third-party smartphones. Optimize Your Workflows Ultra-Rugged Ergonomic Design Zebra’s RFD90 Ultra-Rugged UHF RFID Sleds are engineered to withstand everyday use across a wide variety of harsh conditions, including manufacturing, transportation and logistics environments. These ultra-rugged sleds are dust-proof, spray-proof, water-proof and tested for drops up to 6 feet (1.8 meters) onto concrete surfaces. And superior ergonomics contribute to worker comfort and productivity by reducing strain.   Industry-Leading Performance With a robust read rate of 1,300 tags per second, RFD90 Sleds enable rapid inventory counts and increase workflow accuracy. The RFD9030 Sled offers a standard read range of 22 feet (6.7 meters), while the RFD9090 Sled features an extended range of 75 feet (22.9 meters). The ultra-accurate item-finder mode helps workers locate critical items quickly and easily. The tri-function user-programmable trigger offers easy access to RFID reading, barcode scanning and other features appropriate to fit the demands of your workflows. And with a 7,000 mAh battery, RFD90 Sleds keep going hour after hour.   Flexible Connectivity RFD90 Sleds are compatible with almost any mobile device. Zebra eConnex™ adaptors allow you to mount a broad selection of rugged Zebra mobile computers, while the OtterBox uniVERSE adaptor provides support for many third-party smartphones. Integrated Bluetooth® 5.3 wireless capability connects to almost any Android™, iOS or Windows device. Device pairing is easily accomplished using NFC tap to pair, pair by camera, and Scan-To-Connect options.   Remote Management Built-in Wi-Fi 6 allows easy over-the-air (OTA) device management even when the sled doesn’t have a mobile computer or smartphone attached. Optimize performance and support new features by deploying firmware and configuration updates without having to touch every device. Specifications Physical Characteristics Dimensions RFD9030: 7.4 x 3.2 x 6.8 in./189 x 83.4 x 173 mm RFD9090: 9.8 x 3.8 x 6.8 in./248 x 96.3 x 173 mm Weight RFD9030 with SE4750MR: 25 oz./714 grams RFD9030 with SE4850: 26.5 oz./751 grams RFD9090 with SE4750MR: 26.8 oz./759 grams RFD9090 with SE4850: 28.2 oz./799 grams Power Quick-Release, PowerPrecision Li-Ion 7,000 mAh battery Notification Bluetooth Status LED Wi-Fi Status LED Decode LEDs Battery Status LED Beeper User Input Tri-Function User Programmable Trigger RFID Performance Standards Supported EPC Class 1 Gen 2; EPC Gen2 V2 RFID Engine Zebra Proprietary Radio Technology Fastest Read Rate 1,300 tags/sec Nominal Read Range RFD9030: ~22 ft./~6.7 m RFD9090: ~75 ft./~22.9 m Frequency Range and RF System Output RFD9030: US: 902–928 MHz; 0–30 dBm (EIRP) EU: 865–868 MHz; 0–30 dBm (EIRP) 916.3, 917.5, and 918.7 MHz; 0–30 dBm (EIRP) Japan: 916–921 MHz (w LBT), 0–30 dBm (EIRP)RFD9090: US: 902–928 MHz; 5.5–35.5dBm (EIRP) EU: 865–868 MHz; 5.5–35.5dBm (EIRP) 916.3, 917.5, and 918.7 MHz; 5.5–35.5dBm (EIRP) Japan: 916–921 MHz (w LBT), 5.5–35.5dBm (EIRP) Wireless LAN Radio IEEE 802.11 ax/ac/a/b/g/n 2X2, MU-MIMO, IPv4 Data Rate 5 GHz PHY data rates up to 1.2 Gbps; 2.4 GHz PHY data rates up to 458 Mbps Operating Channels Channel 1–14: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14; Channel 36–196: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165, 172, 183, 184, 185, 187, 188, 189, 192, 196; Channel Bandwidth: 20, 40, 80 MHz Security and Encryption TKIP, AES, EAP-TLS, EAP-PEAPv2, EAP-TTLS, EAP-FAST, PEAP, LEAP SE4750MR Standard Range Imager Sensor Resolution 1280 x 960 pixels Field of View 31° horizontal, 23° vertical Skew Tolerance ±60° Pitch Tolerance ±60° Roll Tolerance 360° Focal Distance 14.2 in./36.1 cm from front of engine Aiming LED 655 nm laser Illumination 2X warm white LEDs SE4850 Extended Range Imager Sensor ResolutionSensor Resolution 1280 x 800 pixels Field of View Far: 12° horizontal, 7.6° vertical Near: 32° horizontal, 20° vertical Skew Tolerance ±60° Pitch Tolerance ±60° Roll Tolerance 360° Focal Distance Far: 15–350 in./38.1–889 cm from front of engine Near: 11 in./27.8 cm from front of engine Aiming Element 655 nm laser Illumination Element Hyper red 660 nm LED Minimum Print Contrast 25% User Environment Drop Specification Multiple 6 ft./1.8 m drops to concrete Tumble Specification 500 cycles (1,000 drops, 1.6 ft./0.5 m) at room temperature Operating Temperature -4°F to 131°F/-20°C to 55°C Storage Temperature -40°F to 158°F/-40°C to 70°C Humidity 5–85% non-condensing Electrostatic Discharge ±15 kV air discharge ±8 kV direct discharge ±8 kVdc indirect discharge Sealing IP65 (spray) and IP67 (submersion) Accessories Cradles and Charging Cable Cup USB Wall Brick for Cable Cup 1-Slot Charging Cradle 1-Slot Charging and USB Cradle Multi-Slot Charging Cradle Multi-Slot Charging and Ethernet Cradle 4-Slot Battery Toaster Other Accessories eConnex™ Adaptors for Supported Zebra Mobile Computers Battery Locking Foot Belt Holster Communication Host Connection Electronic 8-Pin Connection (eConnex™) Bluetooth 5.3 USB Cable Cup Host Computer Zebra mobile computers and tablets 3rd-party smartphones and tablets Windows-based PCs Mobile Computer Adaptors eConnex, Bluetooth, OtterBox uniVERSE Case System Bluetooth Profiles Supported SPP Profile HID Profile Apple iAP2/MFi Remote Management Wi-Fi 6 Ethernet Cradles Via Attached Host Device Regulatory EMI/EMC FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B Electrical Safety IEC 62368-1 (ed.2) UL 62368-1, second edition, CAN/CSA-C22.2 No. 62368-1-14 RF Exposure EU: EN 50364, EN 62369-1, EN 50566, EN 62311; USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102 RFID EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247 LED Classification IEC 62471
