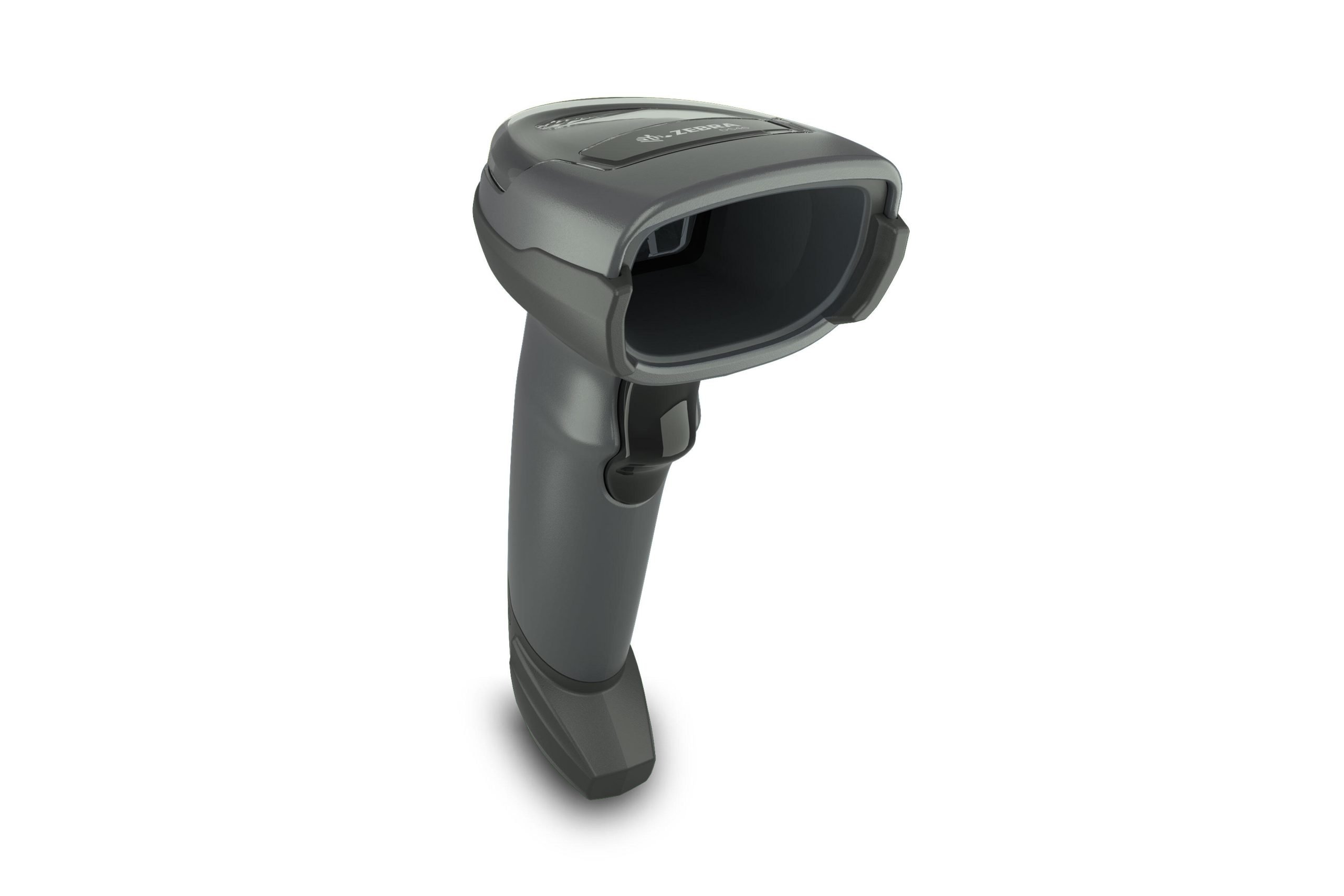

Description Zebra DS4608 2D Corded SR Scanner (DS4608-SR7U2100SGW) Today’s shoppers don’t want to wait in long lines at the checkout or returns desk. The DS4600 Series offers the versatility and scanning performance you need to keep transactions fast and lanes flowing smoothly throughout the whole store. This feature-rich family helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. There is a DS4600 Series model for every need in your store. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department—the DS4600 Series can capture it all. The increased efficiency shrinks lines and keeps customers coming back again and again. And our unique DataCapture DNATM and industry-preferred management tools make it easier than ever to integrate, deploy and manage your scanners. The DS4600 Series—more data capture versatility, more range and more innovation. Resets the bar for versatility and performance   Capture it all with the DS4600 Series No matter what kind of data you need to capture in your store, there is a DS4600 Series model that is ready for the job. Scan 1D and 2D barcodes, whether they’re printed on a label or displayed on a phone. Capture DotCode and dotted DataMatrix barcodes through cellophane, as well as the tiny and dense barcodes found on jewelry tags. Read wide barcodes on packages and cartons in the backroom. You can even collect data from IDs and travel documents using Optical Character Recognition (OCR), or parse driver’s license information for age verification, returns monitoring, loyalty and credit card applications. The result? Superior value. You can deploy a single scanner family for virtually every scanning need across our store.   Count on Zebra performance to keep your lines moving Zebra’s DS4308 set the bar for decode range, and you can count on the same “can’t miss” range from the DS4600 Series. The DS4608-SR can capture UPC codes up to 28 inches away, enabling checkout associates to easily reach items in a customer’s shopping cart without leaving the cashwrap. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes. And a patented rear engine design enables the DS4600 Series to read wider barcodes at every distance, compared to other scanners with a similar field of view. As a result, associates can focus on your customers, rather than positioning items.   Day-in, day-out dependability The DS4600 Series is engineered for durability, inside and out. IP52 sealing protects against spills, while a patented double-sealed optical system guards the critical optical components from dust and liquid—ensuring that the ‘eye’ of the scanner always captures the sharpest possible barcode image for fast and reliable decoding. The recessed scan window protects against smudges, dirt and scratches, which can impact performance. And the scanner is built to survive multiple 6 ft./1.8 m drops to concrete and 2,000 tumbles in our punishing tumble test. Specifications Physical Characteristics Dimensions 6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.7 cm W x 9.8 cm D Weight 5.7 oz. / 161.9 g Input Voltage Range 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply Operating Current at Nominal Voltage (5.0V 340 mA (typical) Standby Current (Idle) at Nominal Voltage (5.0V) 150 mA (typical) Color Nova White, Twilight Black Supported Host Interfaces USB Certified, RS232, TGCS (IBM) 46XX over RS485 Keyboard Support Supports over 90 international keyboards TAA Compliance Trade Agreement Act Compliant Electronic Article Surveillance Compatible with Checkpoint EAS deactivation system User Indicators Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume) Performance Characteristics Light Source Aiming Pattern: circular 617nm amber LED Illumination (2) 660nm red LEDs Imager Field of View 36.1° H x 22.6° V nominal Image Sensor 1280 x 800 pixels Minimum Print Contrast 15% minimum reflective difference Skew Tolerance /- 60° Pitch Tolerance /- 60° Roll Tolerance 0° – 360° Imaging Characteristics Graphics Format Support Images can be exported as Bitmap, JPEG or TIFF Image Quality 96PPI on an A4 document (DS4608-SR) Environmental Operating Temperature 32.0° to 122.0° F / 0.0° to 50.0° C Storage Temperature -40.0° to 158.0° F / -40.0° to 70.0° C Humidity 5% to 95% RH, non-condensing Drop Specification Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete Tumble Specification Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler Environmental Sealing IP52 Electrostatic Discharge (ESD) ESD per EN61000-4-2, /-15 KV Air, /-8 KV Direct, /-8 KV Indirect Ambient Light Immunity 0 to 10,000 foot candles/0 to 107,000 Lux Regulatory Environmental 2011/65/EU and EN 50581:2012 and EN IEC 63000:2018 Electrical Safety UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014 LED Safety IEC 62471:2006 (Ed.1.0); EN 62471:2008 EMI/RFI FCC: 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B, EN 55032, Class B, EN 55024, EN 55035, EN 60601-1-2:2015, IEC 60601-1-2:2014 Accessories Gooseneck Intellistand, Cup Symbol Decode Capability3 1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix OCR OCR-A, OCR-B, MICR, US Currency Minimum Element Resolution Code 39 – 3.0 mil (DS4608-SR) DataMatrix – 5.0 mil (DS4608-SR) Code 39 – 2.0 mil (DS4608-HD) DataMatrix – 4.0 mil (DS4608-HD) DS4608-SR/DL Decode Ranges (Typical)1 Symbology/Resolution Near/Far Code 39: 3 mil 2.2 in./5.6 cm to 5.4 in./13.7 cm Code 39: 5 mil 0.7 in./1.8 cm to 11.0 in./27.9 cm Code 39: 20 mil 0 in./0 cm to 44.0 in./111.8 cm Code 128: 5 mil 2.7 in./6.9 cm to 5.4 in./13.7 cm PDF 417: 6.7 mil 1.3 in./3.3 cm to 10.0 in./25.4 cm UPC: 13 mil (100%) 0 in./0 cm to 28.0 in./71.1 cm DataMatrix: 10 mil 1.0 in./2.5 cm to 11.5 in./29.2 cm QR: 20 mil 0 in./0 cm to 17.5 in./44.5 cm DS4608-HD/HL Decode Ranges (Typical)1 Symbology/Resolution Near/Far Code 39: 3 mil 1.3 in./3.3 cm to 6.0 in./15.2 cm Code 39: 5 mil 0 .1 in./0.3 cm to 11.5 in./29.2 cm Code 39: 20 mil 0.6 in./1.5 cm to 29.0 in./73.7 cm Code 128: 5 mil 1.7 in./4.3 cm to 5.0 in./12.7 cm PDF 417: 6.7 mil 0.6 in./1.5 cm to 9.3 in./23.6 cm UPC: 13 mil (100%) 0 in./0 cm to 18.0 in./45.7 cm DataMatrix: 10 mil 0.2 in./0.5 cm to 9.5 in./24.1 cm QR: 20 mil 0 in./0 cm to 13.5 in./34.3 cm
